Ubiquiti EdgeRouter X setup

Apr 10, 02:05 PM

### 2021-09-18 consider switching to Mikrotik

written from:

https://github.com/mjp66/Ubiquiti/blob/master/Ubiquiti%20Home%20Network.pdf

pages 16-19

1) power up or RESET by powering up with paper-clip in reset hole

2) say yes to WIZARD

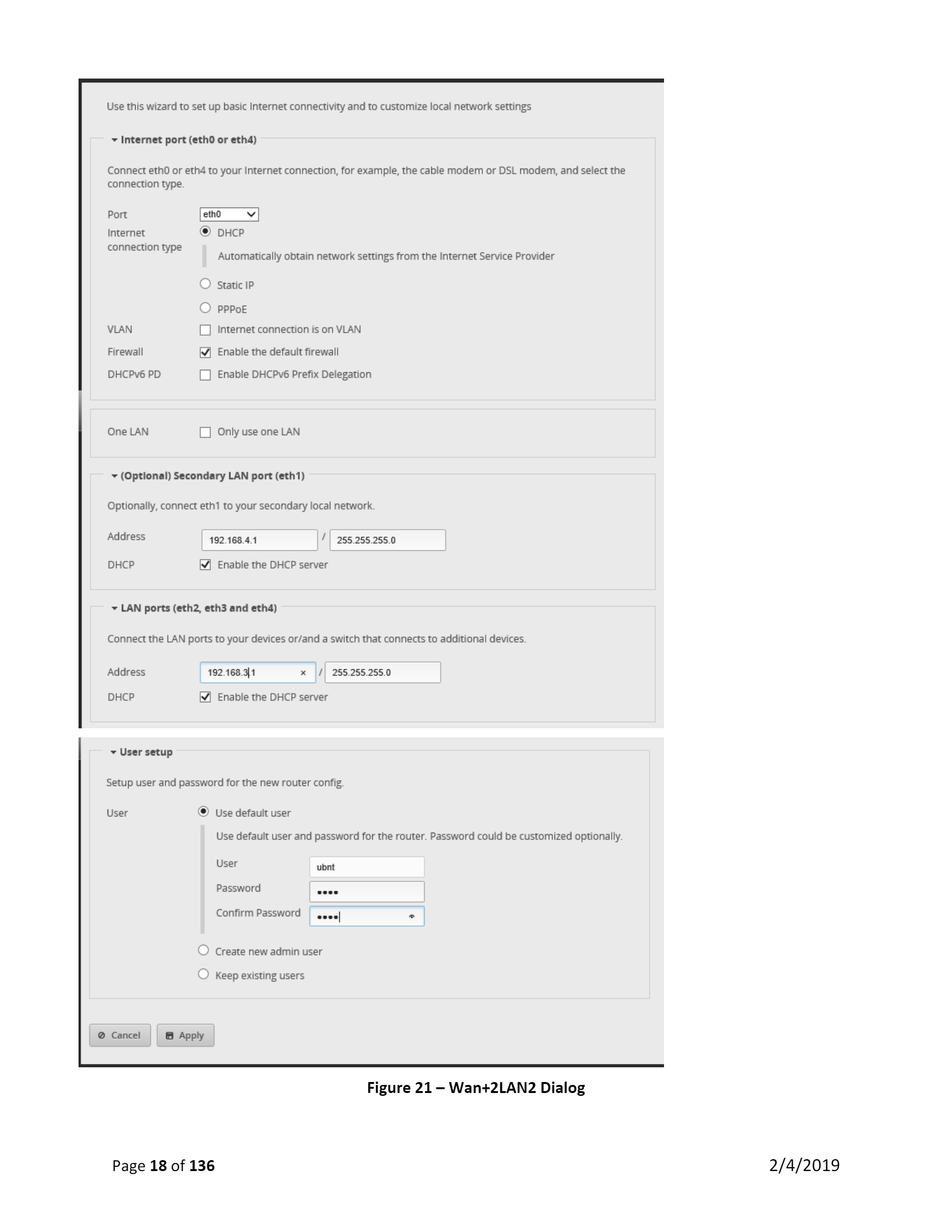

3) Select “WAN+2LAN2” on the left side

4) first section “Internet Port” section, no changes (i think ??)

5) In the next (unlabeled section):

One LAN: Uncheck

6) LAN ports (eth2, eth3, eth4)” section:

Address: 192.168.100.1/255.255.255.0

7) reboot

===================

to install new firmware:

0) grab firmware here: https://www.ui.com/download/edgemax/edgerouter-x/er-x

1) bottom left is SYSTEM button

2) toward the bottom on the right (scroll down) look for “Upgrade System Image”

==========================

Mark Edwards

,

---
